NLP Series DIGITAL AUDIO PROCESSOR
NLP series processor, as a leader in the field of audio processing, with excellent performance and
diversification of series, precision and high response Audio processing challenges, NLP family honor
standalone, DANTE, AES 67, special and PCM five Series, each one is ingenious, aims to open an
unprecedented audio auditory feast for users

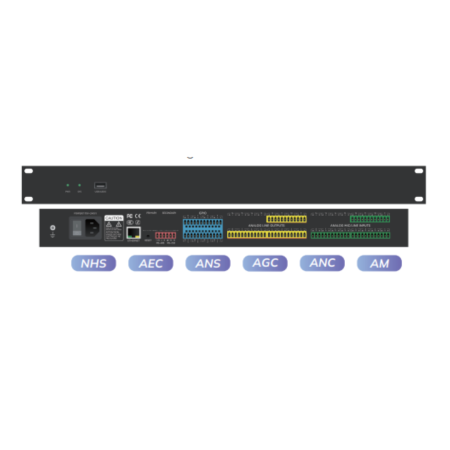

12x8 Digital Audio Processor
NLP1208
- DSP Platform – ADI SHARC processor with semi-open architecture & Ethernet support.
- Multi-Device Integration – Centralized control via open UI, delivering 24-bit/48kHz audio.
- Feedback Control – Independent adaptive suppression per channel.
- Audio Processing – AEC, ANS, AMC, AGC, Ducker, ANC.
- Mixing Matrix – Flexible matrix with adjustable input levels.
- Presets – Up to 8 customizable presets.
- Channel Customization – Supports duplication, linking, grouping.
- Control – RS-232 & UDP, customizable ports & full command access.
- Wall Panel – Works with two programmable panel types.
- USB Audio – Dual-channel sound card for recording, broadcasting, conferencing.
- Power – Supports PoE & DC 12V adapter.
- Compatibility – Fully supports iOS & Windows.

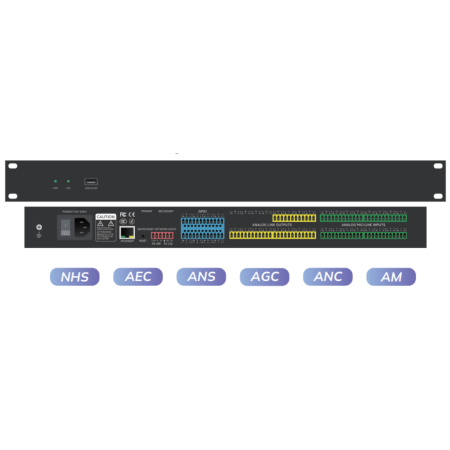

12x12 Digital Audio Processor
NLP1212
- DSP Platform – ADI SHARC processor with semi-open architecture & Ethernet support.
- Multi-Device Management – Centralized control via open UI, delivering 24-bit/48kHz audio.
- Adaptive Feedback Suppression – Independent per-channel auto detection & elimination of feedback.
- Audio Processing Suite – AEC, ANS, AMC, AGC, Ducker, ANC.
- Mixing Matrix – Full-featured, adjustable input levels.
- Presets – Up to 8 independent, customizable presets.
- Channel Management – Supports duplication, linking, grouping.
- Control Options – RS-232 & UDP with customizable ports & full command access via software.
- Wall Panel Integration – Compatible with two programmable wall panel types.
- USB Audio – Built-in dual-channel sound card for recording, broadcasting, and conferencing.
- Power Options – Operates via PoE (Ethernet) or DC 12V adapter.
- Cross-Platform – Fully compatible with iOS & Windows.

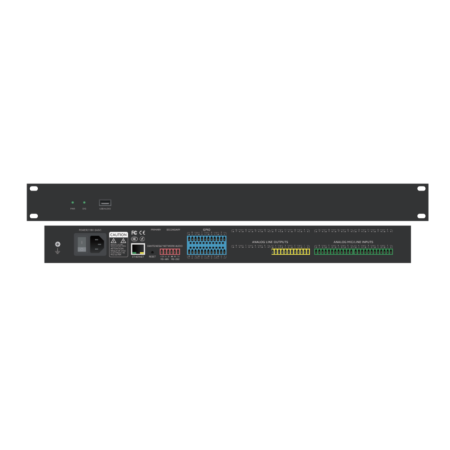

8x4 Digital Audio Processor
NLP1608
- High-Performance DSP – ADI SHARC processor with semi-open architecture & Ethernet support.
- Multi-Device Management – Centralized open UI control with 24-bit/48kHz audio quality.
- Adaptive Feedback Suppression – Independent per-channel detection & suppression.
- Advanced Audio Processing – AEC, ANS, AMC, AGC, Ducker, ANC.
- Mixing Matrix – Adjustable input levels with full-featured flexibility.
- Presets – Up to 8 independent, customizable presets.
- Channel Management – Supports duplication, linking & grouping of channels.
- Control Options – RS-232 & UDP with customizable ports and full software access.
- Wall Panel Integration – Works with two programmable wall panel types.
- USB Audio Interface – Dual-channel USB for recording, broadcasting & conferencing.
- Power Supply – Operates via PoE or DC 12V adapter.
- Cross-Platform – Seamless with iOS & Windows systems.
16x16 Digital Audio Processor
NLP1616
- Powerful DSP – ADI SHARC processor with semi-open architecture & Ethernet.
- Seamless Integration – Centralized management via open UI, delivering 24-bit/48kHz sound.
- Feedback Suppression – Per-channel adaptive detection & auto suppression.
- Audio Suite – AEC, ANS, AMC, AGC, Ducker, ANC.
- Mixing Matrix – Adjustable input levels with full flexibility.
- Presets – Up to 8 independent, configurable presets.
- Channel Control – Supports duplication, linking & grouping.
- Central Control – RS-232 & UDP with customizable ports & full software access.
- Wall Panels – Compatible with two programmable types.
- USB Audio – Built-in dual-channel sound card for recording, broadcasting & conferencing.
- Power Options – Runs on PoE or DC 12V adapter.
- Cross-Platform – Works with iOS & Windows.
Transforming Customer Experience
Types of LED Screens
These screens are designed to deliver high-quality visuals that can be viewed up close,
making them perfect for product displays and interactive kiosks.
Indoor LED Screens
Ideal for showcasing products and promotions within the store, indoor LED screens come in various sizes and resolutions. These screens are designed to deliver high-quality visuals that can be viewed up close, making them perfect for product displays and interactive kiosks.
Outdoor LED Screens
Outdoor LED screens are robust and weather-resistant, designed to withstand environmental elements while delivering bright, vibrant visuals. These screens are perfect for storefronts and outdoor events, attracting attention and driving foot traffic.
Rental LED Screens
For retailers hosting events, exhibitions, or pop-up shops, rental LED screens offer a flexible solution. These modular screens are easy to set up and dismantle, allowing retailers to create dynamic displays tailored to specific occasions.
