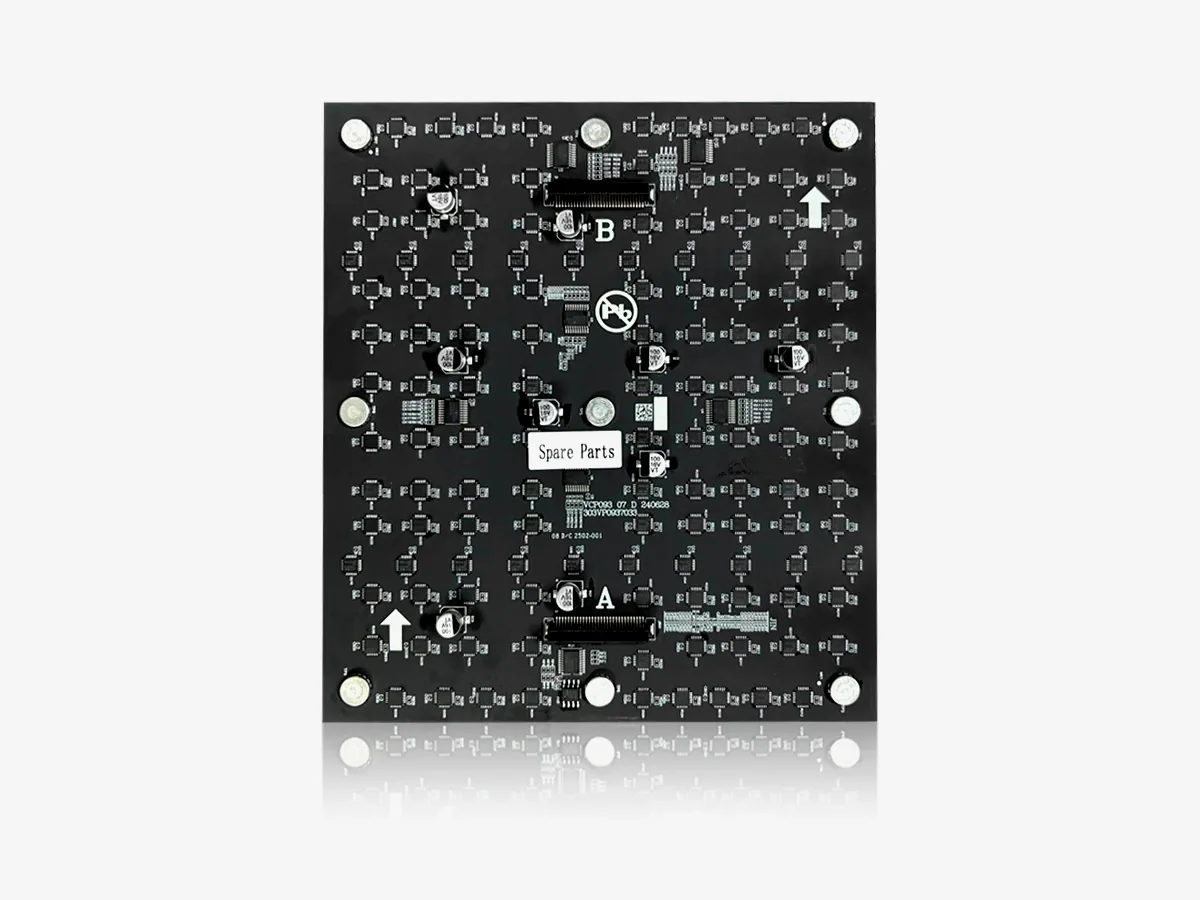

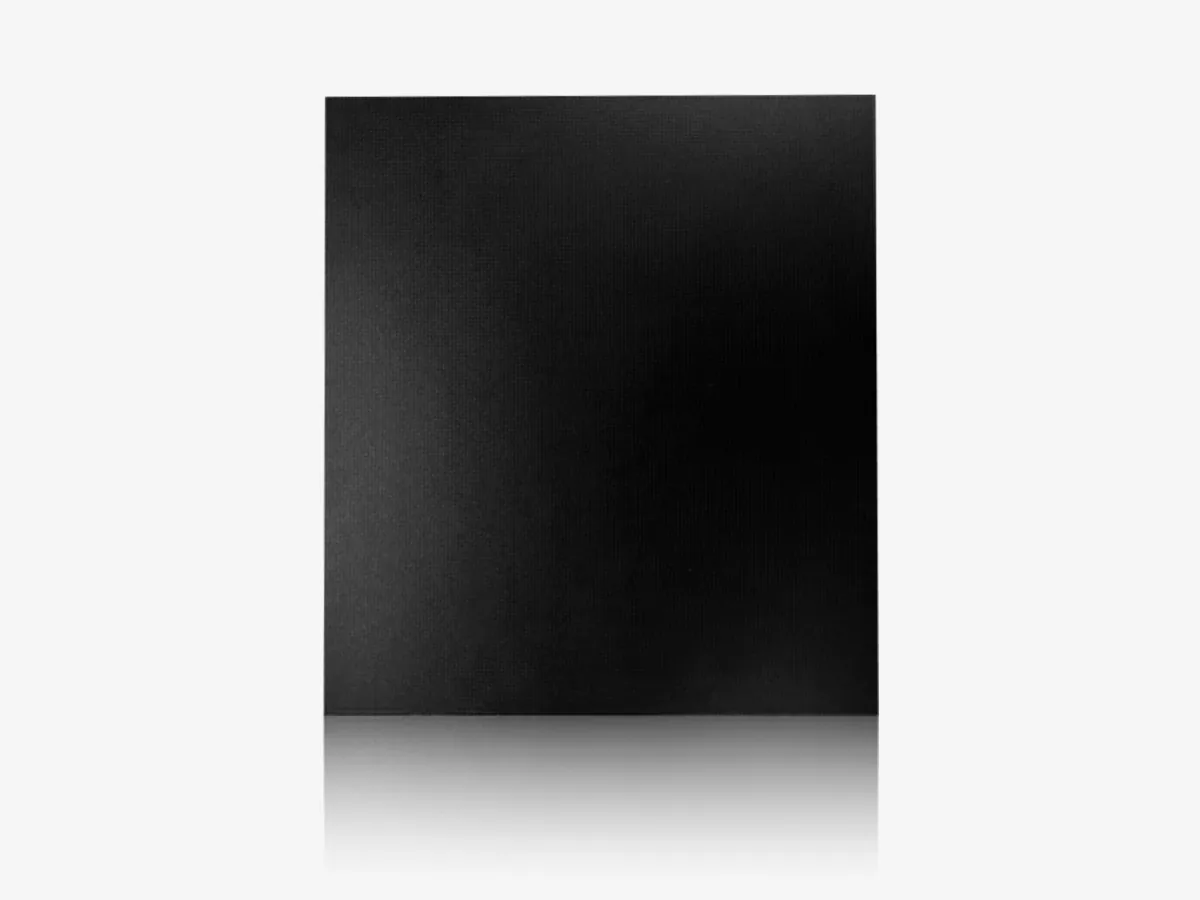

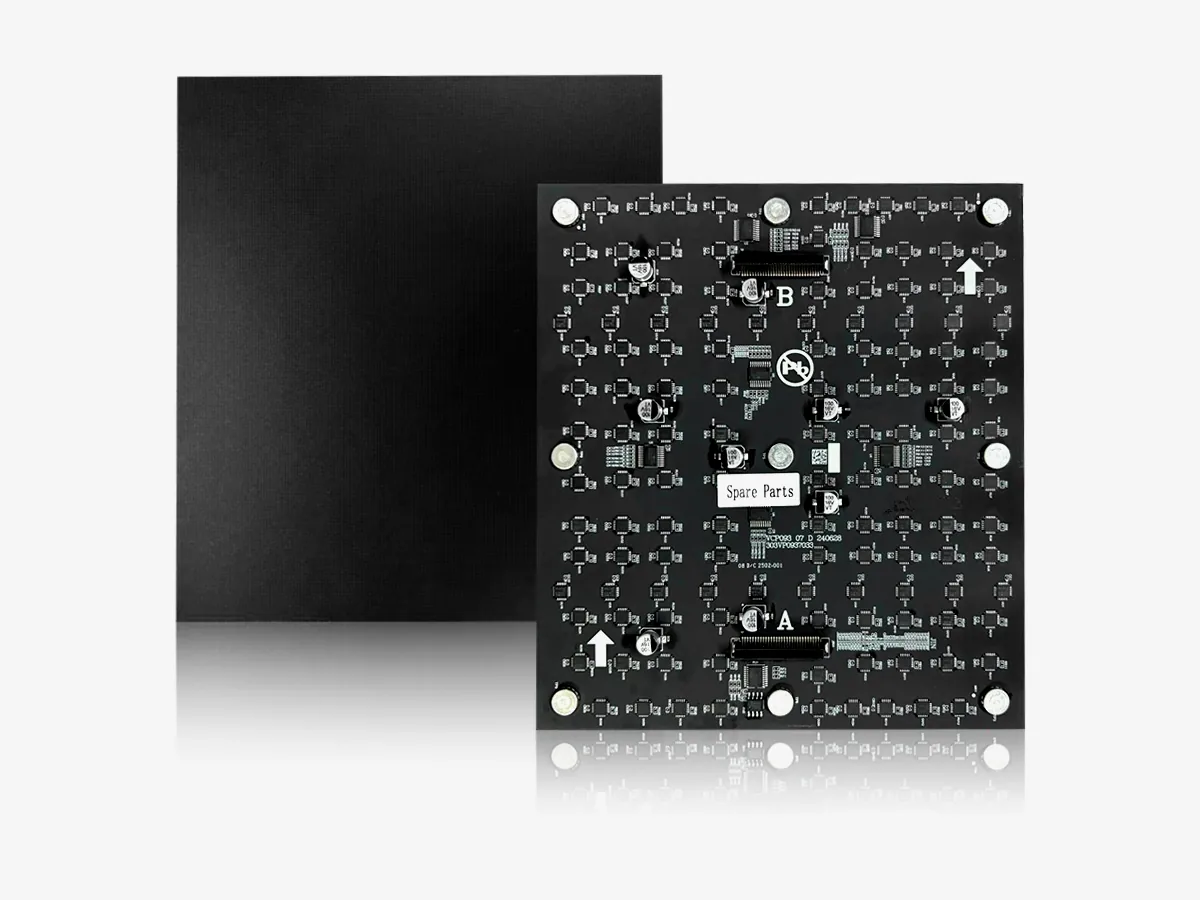

Front / Rear
COB Flip-Chip 1.53 mm
No lens. No glare. Just light. · 1.53 mm pixel pitch.
4.7
₹ Enquire
B2B pricing, quote on enquiry. Bulk discount available.
◇ Highlights
- Pixel pitch 1.53 mm
- Brightness 1000-1200 nits
- Cabinet 150 × 168.75 mm
- Best for Lobby · Conference · Retail
Pan-India shipping
3-year warranty
24/7 support
◉ Product description
About this product.
Flip-chip LEDs bonded directly to the board, sealed under a flat resin layer. Anti-scratch surface, 160° viewing angle, near-zero black reflection. The 1.53 mm variant of our COB Flip-Chip (Chip On Board · Flip-Chip) line, engineered for lobby · conference · retail environments. Brightness 1000-1200 nits keeps content readable from 2.0 m+, with Front / Rear maintenance and IP54 ingress protection.
◉ Specifications
Technical specs.
Full datasheet on request, every spec independently tested.
1.53 mm
COB Flip-Chip (Chip On Board · Flip-Chip)
~409,600 dots/m²
150 × 168.75 mm
96 × 108 px
150 × 168.75 mm
1000-1200 nits
1920-3840 Hz
10000:1
160° / 160°
14-16 bit
>97%
>100,000 hrs
~0.28 kg
Front / Rear
IP54
2.0 m+
◉ In the box
What you get.
01
LED cabinets (qty per BOM)
02
Receiving cards (pre-fitted)
03
Power & signal cables
04
Mounting / hanging hardware
05
Spare modules & power supplies
06
Calibration & commissioning report
◉ Applications
Where it fits best.
Lobby
Conference
Retail
